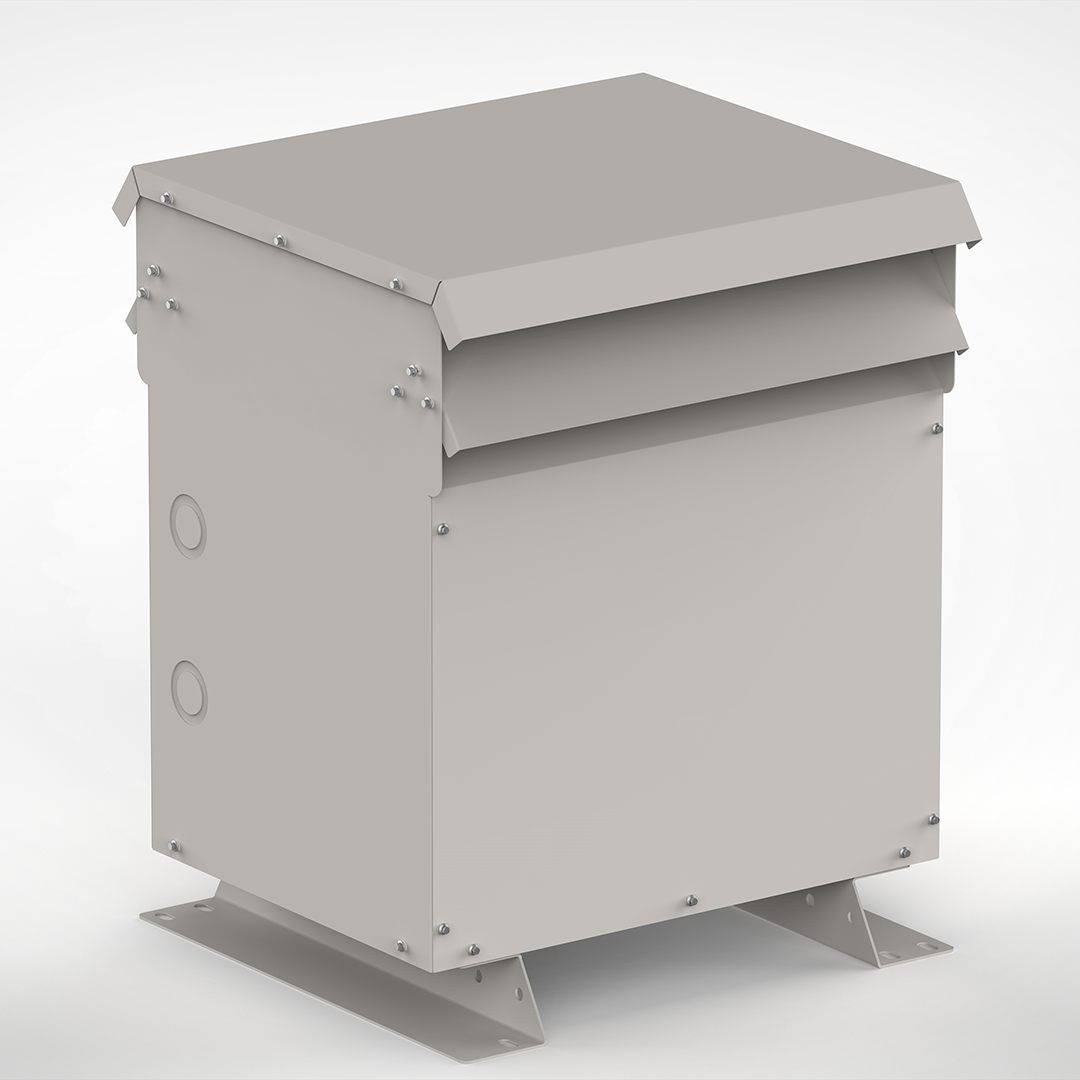

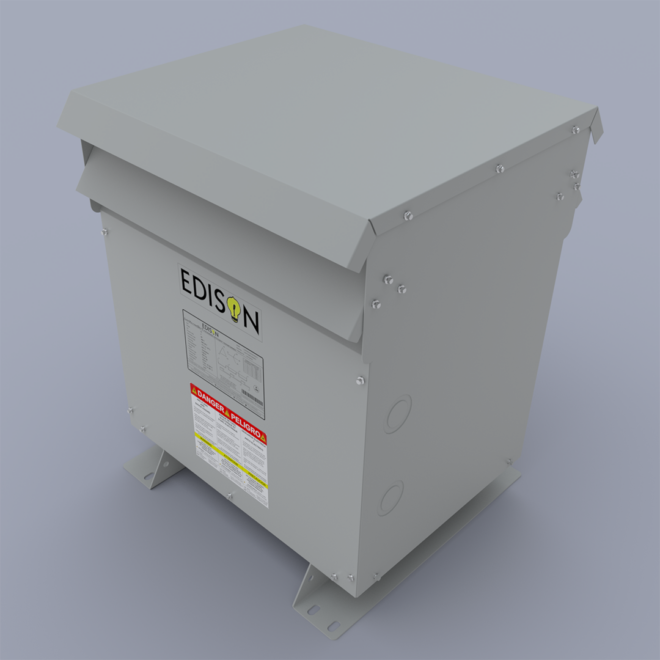

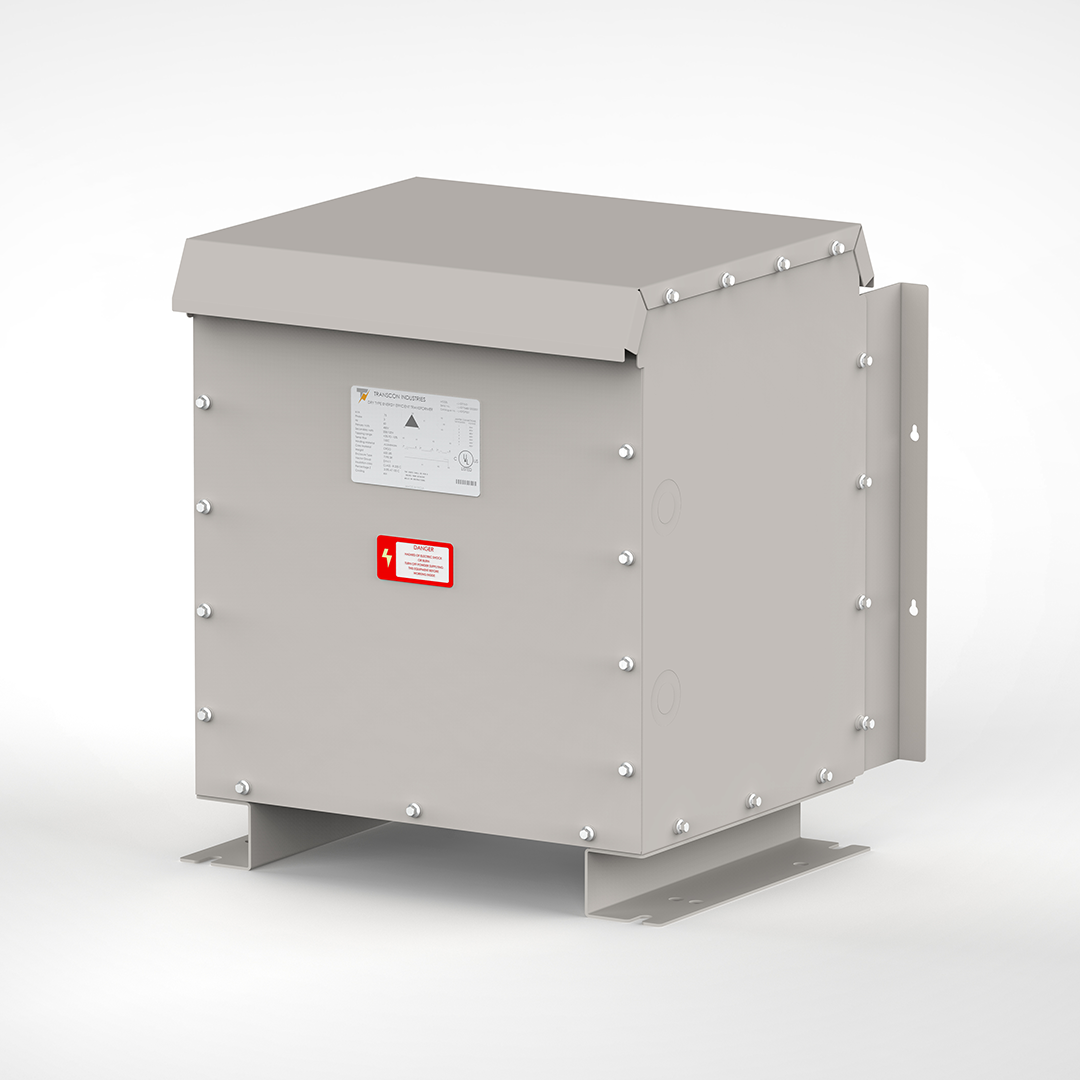

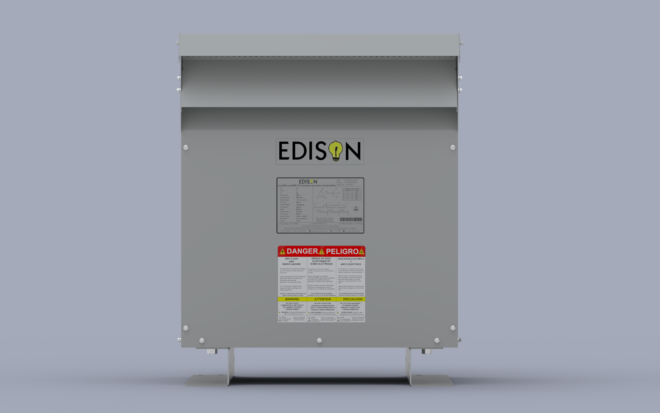

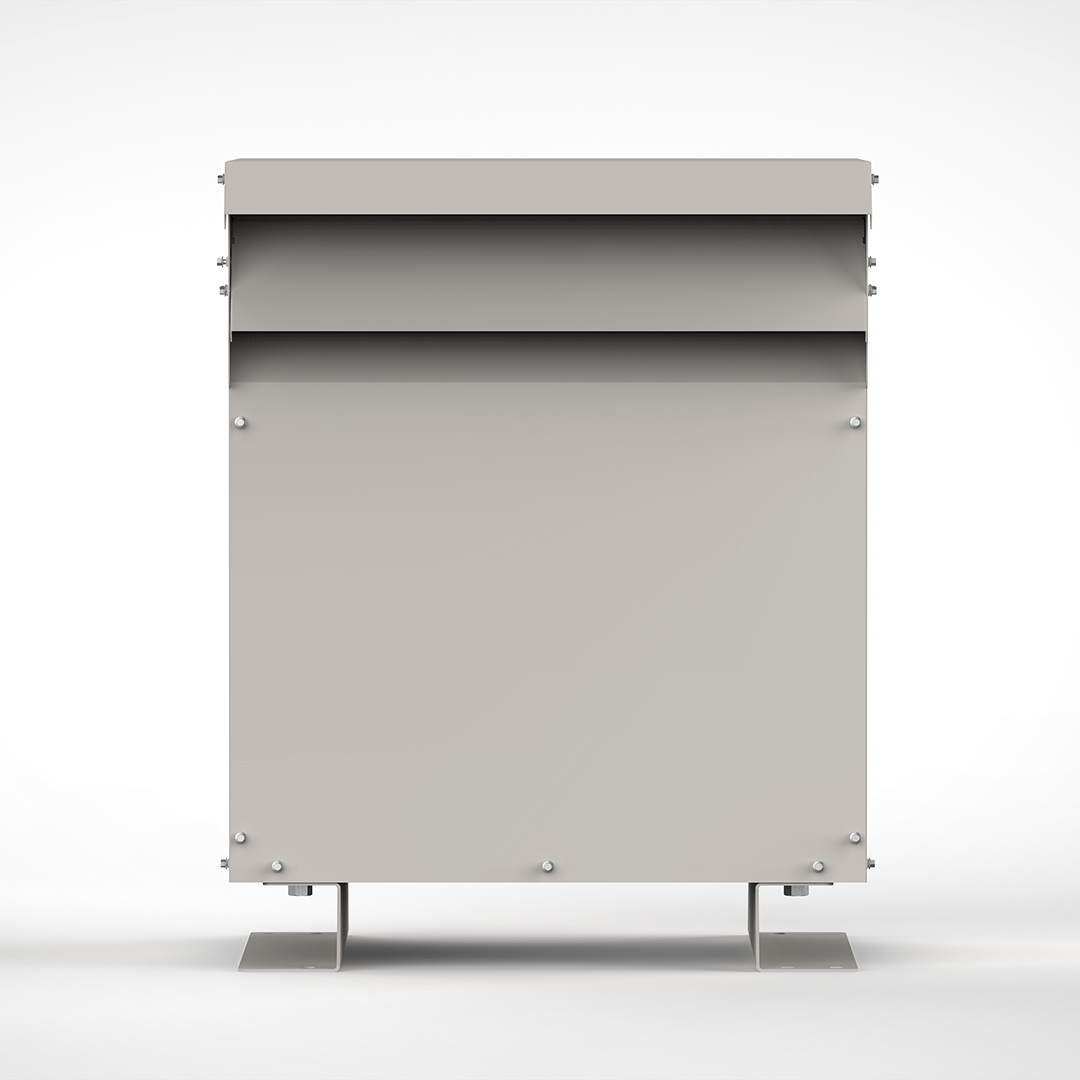

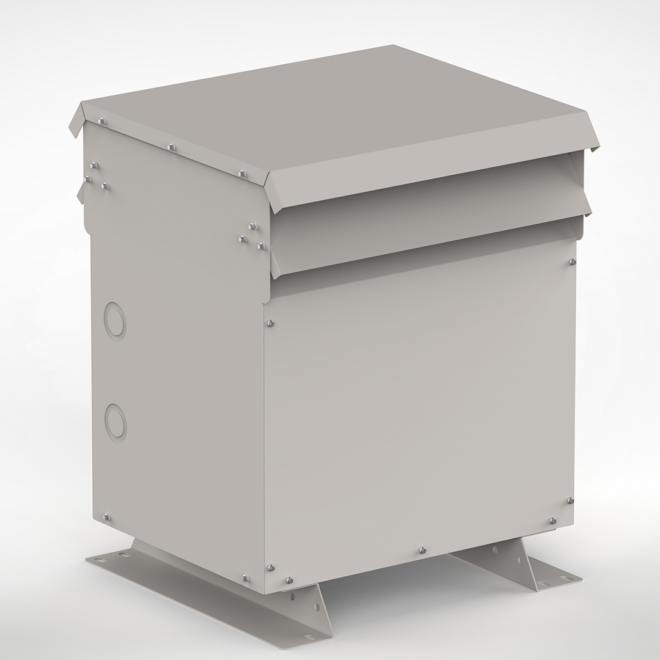

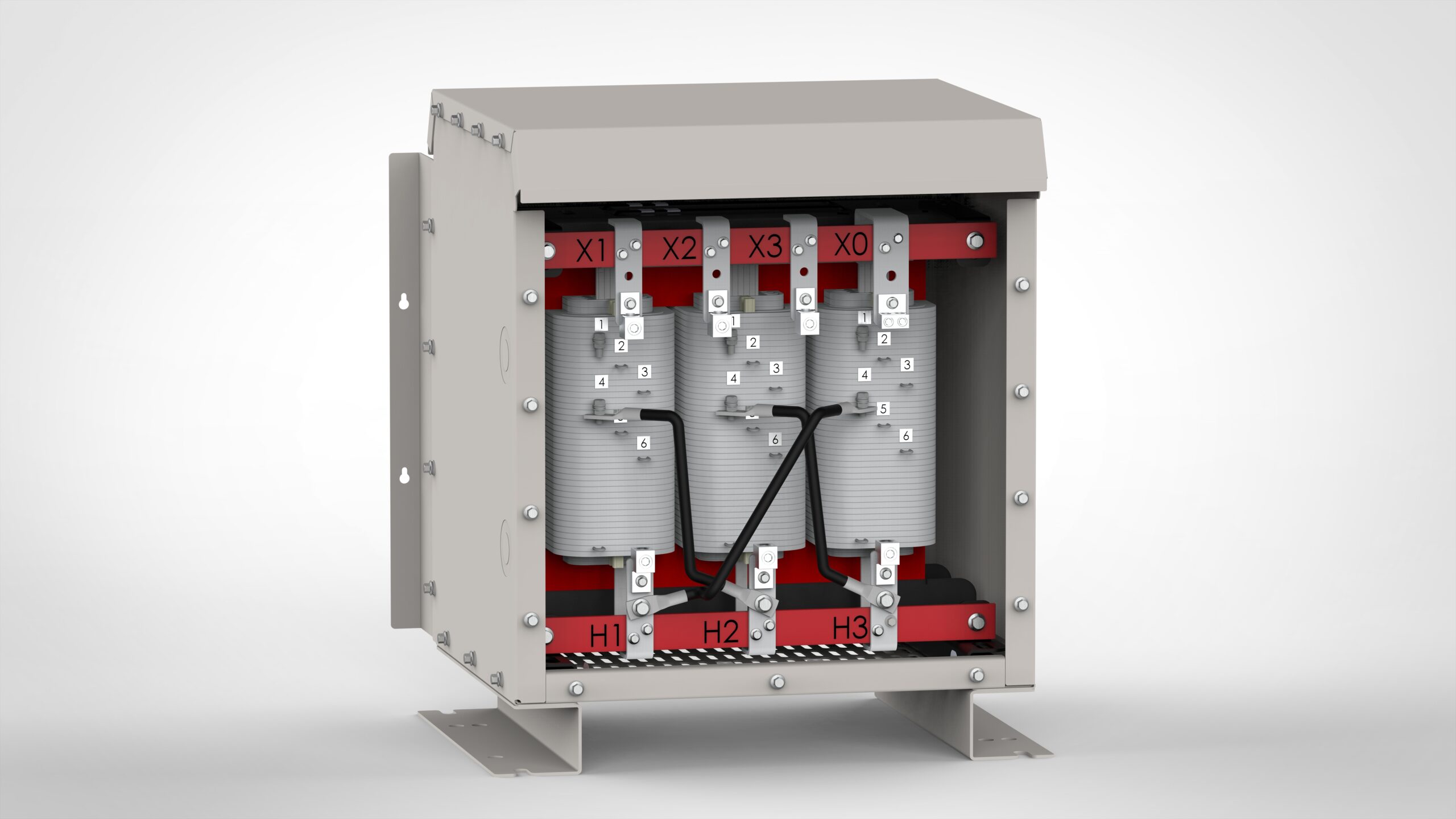

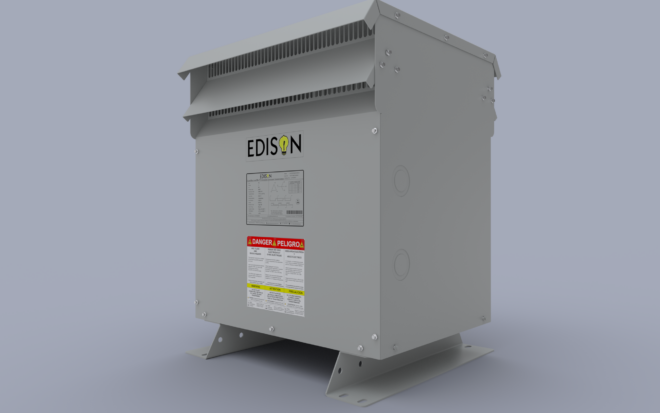

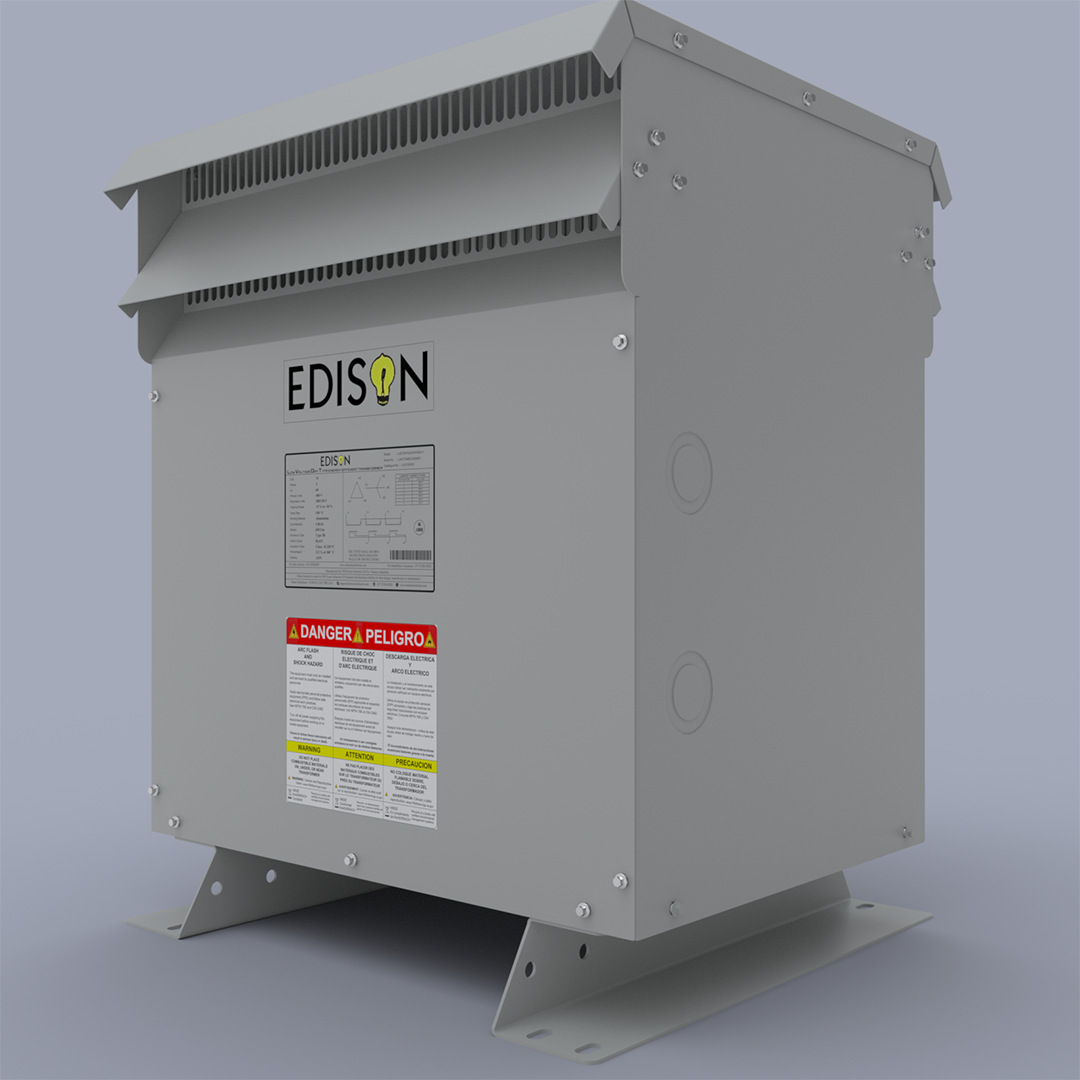

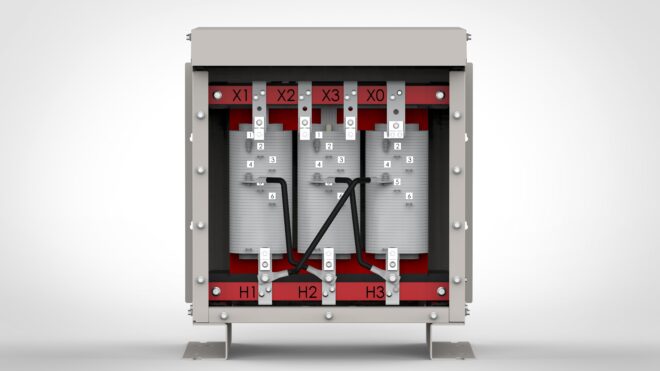

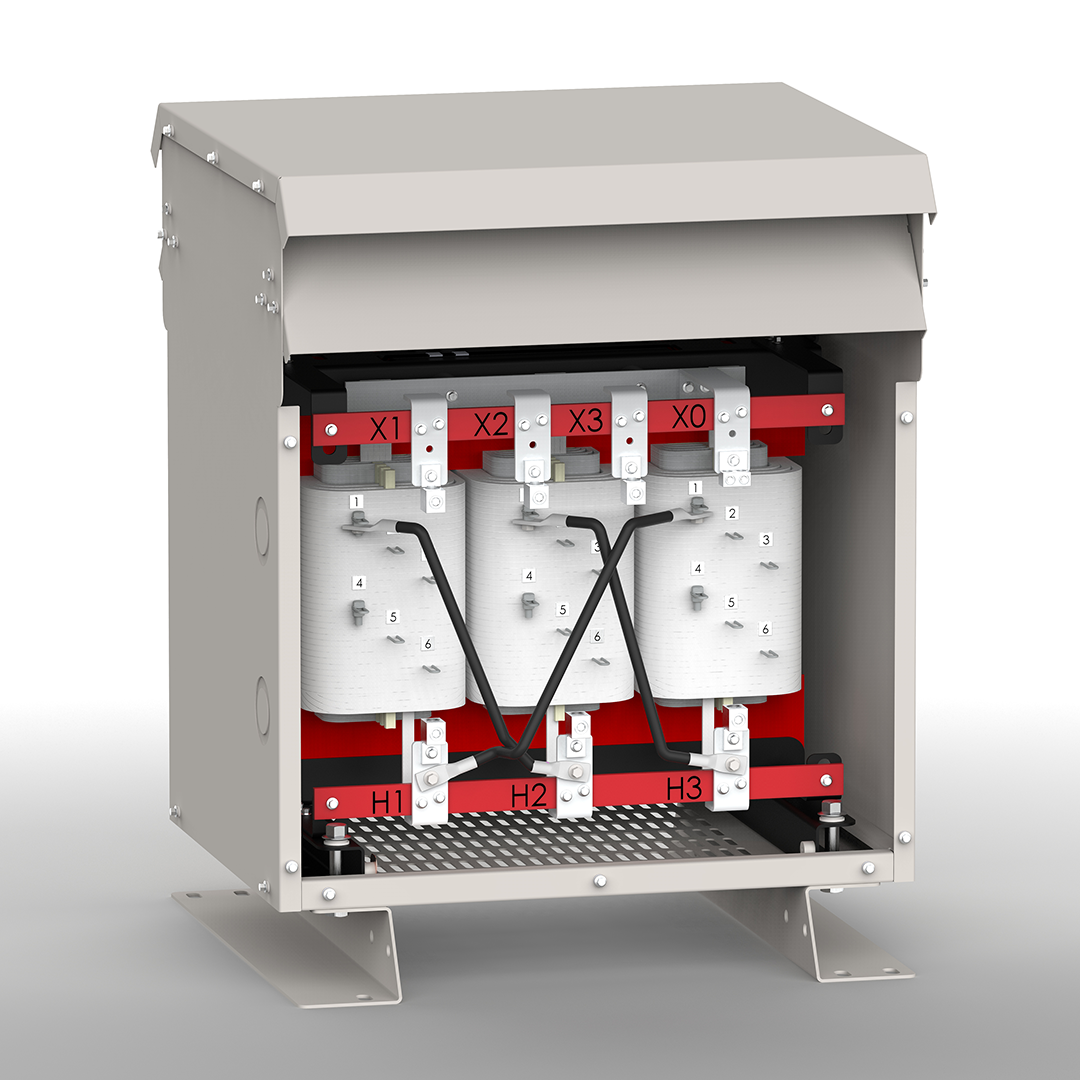

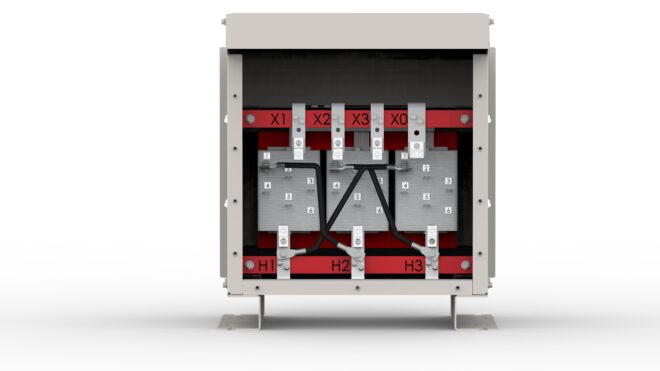

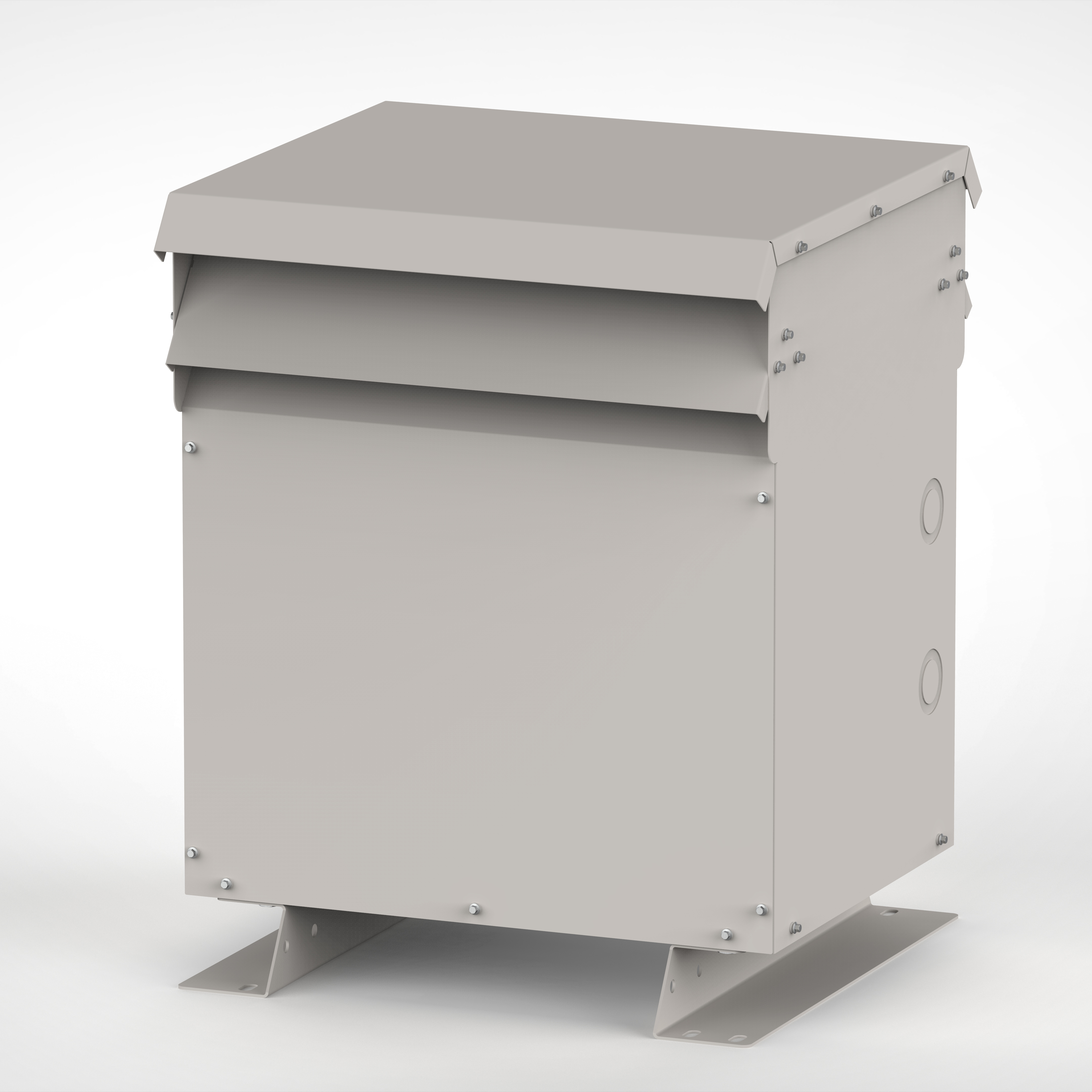

Edison 75 KVA Low Voltage Dry Transformer 3 Phase 480 to 208/120V, 60 Hz, LVDT
SKU
Overview
This 75 kVA transformer is designed for high performance, operating with a primary voltage of 480V and a secondary voltage of 208Y/120V. It achieves an impressive efficiency of 99.40%, utilizing an aluminum conductor and CRGO core.
Product Description
75KVA, LVDT, 480 V Primary, 208/120 V Secondary, 60 Hz,Dyn11, Aluminum Wound, CRGO Core, 3 Phase Complies to DOE 2016
✅ UL Certified
⚖️ DOE 2016 Compliant
🔌 Commercial-Grade Power Edison Low Voltage Dry-Type Transformer 75 KVA configuration Step-down: 480V ➡️ 208Y/120V
3-Phase Power your operations with confidence using Edison Transformers — built for performance, reliability, and code compliance. Ideal for commercial and industrial environments, these UL Certified and DOJ Compliant transformers are engineered for optimal efficiency and long-term durability.
⚙️ Key Features: Voltage Conversion: 480V to 208Y/120V AC KVA : 75 KVA Phase: 3-Phase Turns Ratio: 1:20 Frequency: 57–63 Hz (North America Standard) Mounting: Floor Mountable Finish: Durable Gray Powder-Coated Exterior (NEMA 3)

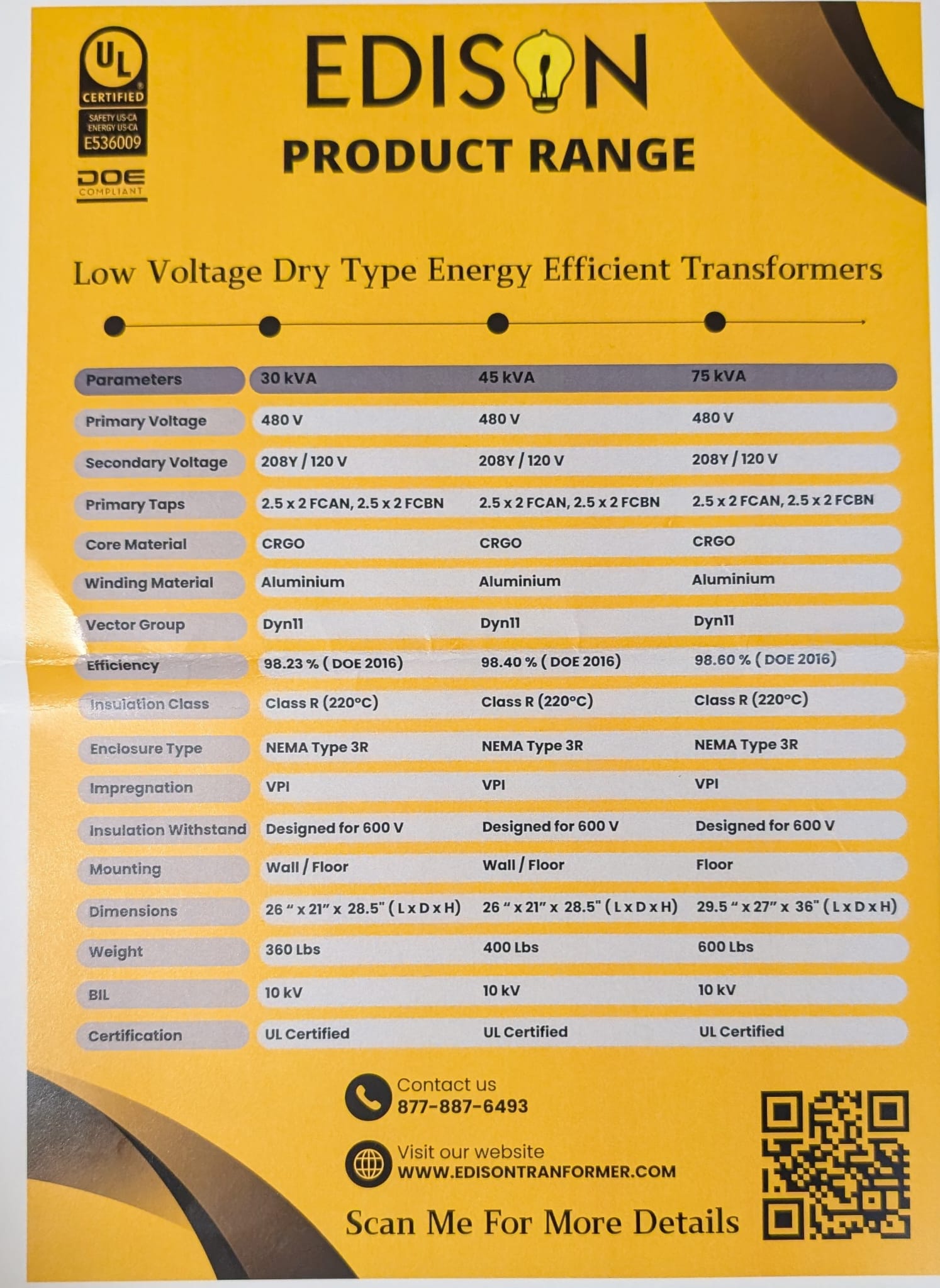

Details

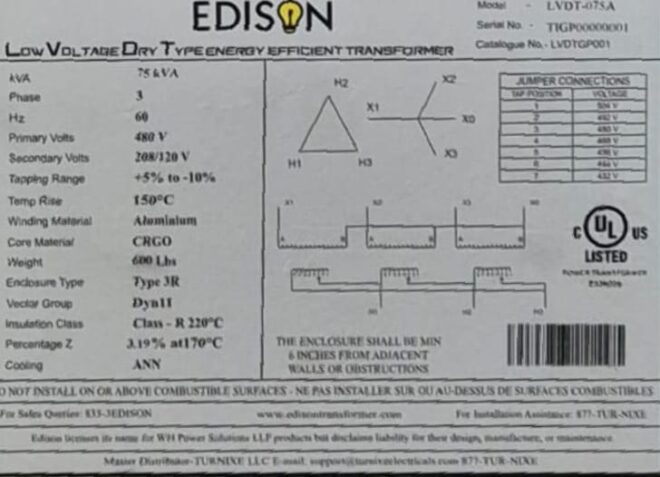

| Rated Power | 75 kVA |
|---|---|
| Primary Voltage | 480 V |
| Secondary Voltage | 208Y/120 V |
| Conductor Material | Aluminium |
| Core Material | CRGO |
| Impedance | 1.0 – 5.0 % |
| Taps | +5% to -10 % in steps of 2.5% |
| Efficiency as per DOE 2016 | 98.60% |
| Temp Rise | 150 Deg C |
| Insulation Class | Class R ( 220 Deg C) |
| Vector Group | Dyn11 |
| Frequency | 60 Hz |
| Enclosure Type | Nema Type 3R |
| Weight | 635 Lbs |
| Dimensions | 29.5 x 27.5 x 36 inch ( L x D x H) |
