Overview
This 30 kVA transformer operates with primary voltage of 480V and secondary voltage of 208Y/120V, ensuring robust performance with a 99.23% efficiency. It features an aluminum conductor and CRGO core for durability and efficiency.
Product Description

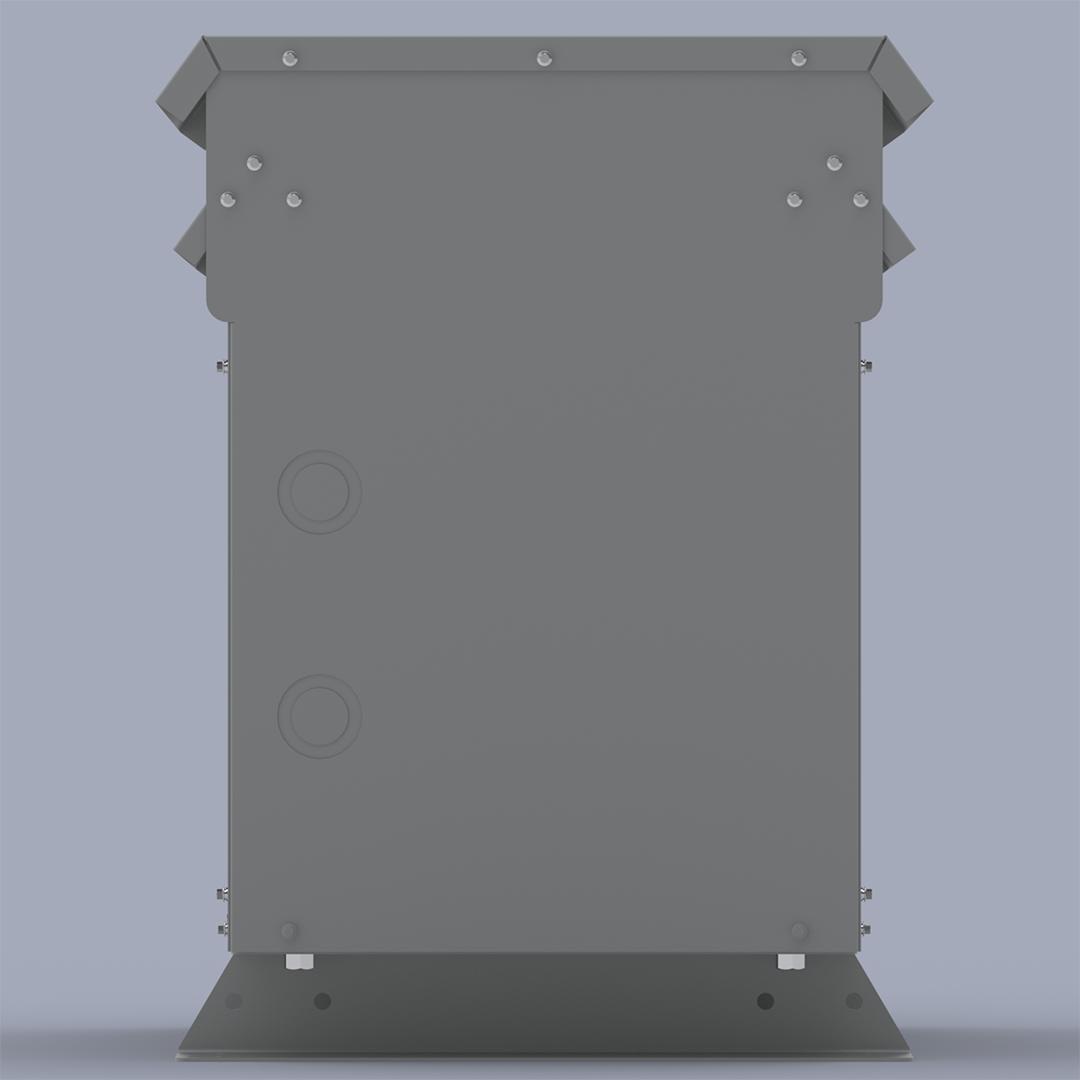

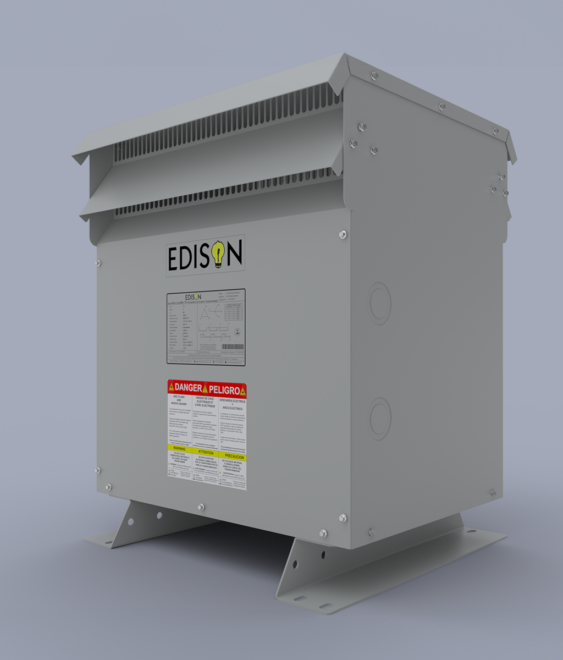

30 kVA LVDT, 480 V Primary, 208/120 V Secondary, 60 Hz,Dyn11, Aluminum Wound, CRGO Core, 3 Phase Complies to DOE 2016
✅ UL Certified
⚖️ DOE 2016 Compliant
🔌 Commercial-Grade Power Edison Low Voltage Dry-Type Transformer 30 KVA configuration Step-down: 480V ➡️ 208Y/120V
3-Phase Power your operations with confidence using Edison Transformers — built for performance, reliability, and code compliance. Ideal for commercial and industrial environments, these UL Certified and DOJ Compliant transformers are engineered for optimal efficiency and long-term durability.
⚙️ Key Features: Voltage Conversion: 480V to 208Y/120V AC KVA : 30 KVA Phase: 3-Phase Turns Ratio: 1:20 Frequency: 57–63 Hz (North America Standard) Mounting: Wall or Floor Mountable (75KVA is only Floor) Finish: Durable Gray Powder-Coated Exterior (NEMA 3)
Details
Rated Power | 30 kVA |
---|---|
Primary Voltage | 480 V |
Secondary Voltage | 208Y/120 V |
Conductor Material | Aluminium |
Core Material | CRGO |
Impedance | 1.0 – 4.5 % |
Taps | +5% to -10 % in steps of 2.5% |
Efficiency as per DOE 2016 | 98.23% |
Temp Rise | 150 Deg C |
Insulation Class | Class R ( 220 Deg C) |
Vector Group | Dyn11 |
Frequency | 60 Hz |
Enclosure Type | Nema Type 3R |
Weight | 360 Lbs |
Dimensions | 26 x 21.5 x 28.5 inch ( L x D x H) |
Current Rating | 36 Amps |
Mounting Type | Floor Mount/Wall Mount |
